Description
Custom semiconductor load lock inflatable seals are reviewed around the chamber drawing, vacuum interface, door movement, sealing gap, material cleanliness needs and air connection space. Share the load lock assembly details so Moliseal can review the custom engineering review basis for quotation.

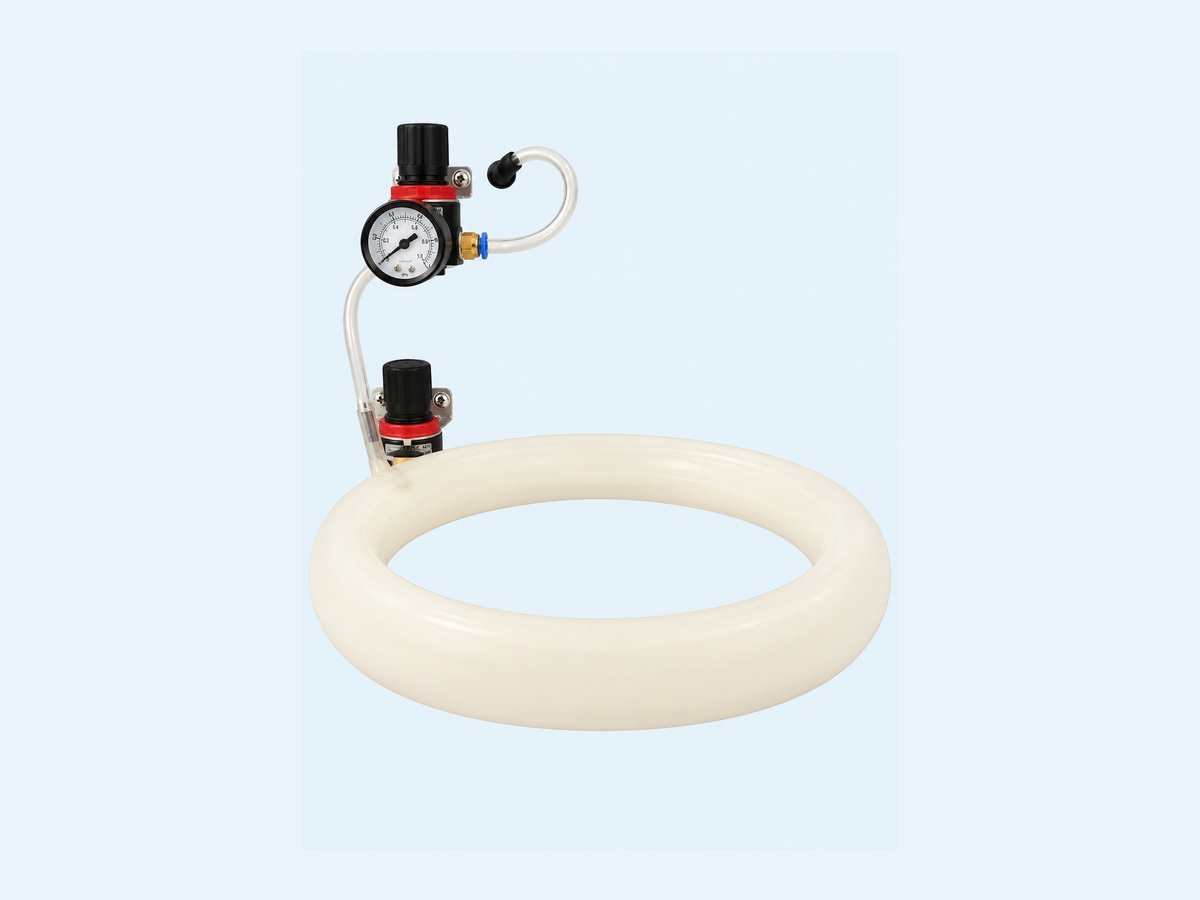

The seal is restrained in the load lock interface and expands under controlled air input to close the designed gap against the mating surface.
The final working shape depends on groove restraint, gap, door motion, contact land and pressure conditions, so the installed interface must be reviewed before performance is stated.
This inflatable seal can be considered for load lock doors, transfer chamber doors and related vacuum equipment closures where a controlled moving seal is required.
Suitability depends on the actual chamber geometry, process exposure, cleanliness expectations and validation inputs supplied with the RFQ.
Specifications
- Seal form: Custom closed-loop or formed profile reviewed from the approved load lock interface drawing.
- Material basis: Selected after engineering review of vacuum exposure, cleanliness expectations, bake or cleaning conditions and required documents.
- Air connection: Position, fitting style and protection method confirmed from service access and chamber layout.
Frequently asked questions
What information is needed to quote a semiconductor load lock inflatable seal?
Send the interface drawing, seal path, working gap, movement direction, vacuum exposure, process media, temperature, cleaning method, air connection requirements, documentation needs and quantity.
Can Moliseal choose the material from engineering review details?
Yes. Material family and grade are reviewed after the vacuum, cleanliness, media, temperature and document requirements are known.
Can the air connection be customized?
Yes. Connection position, fitting style and protection method can be reviewed around chamber layout, service access and moving parts.
