Description

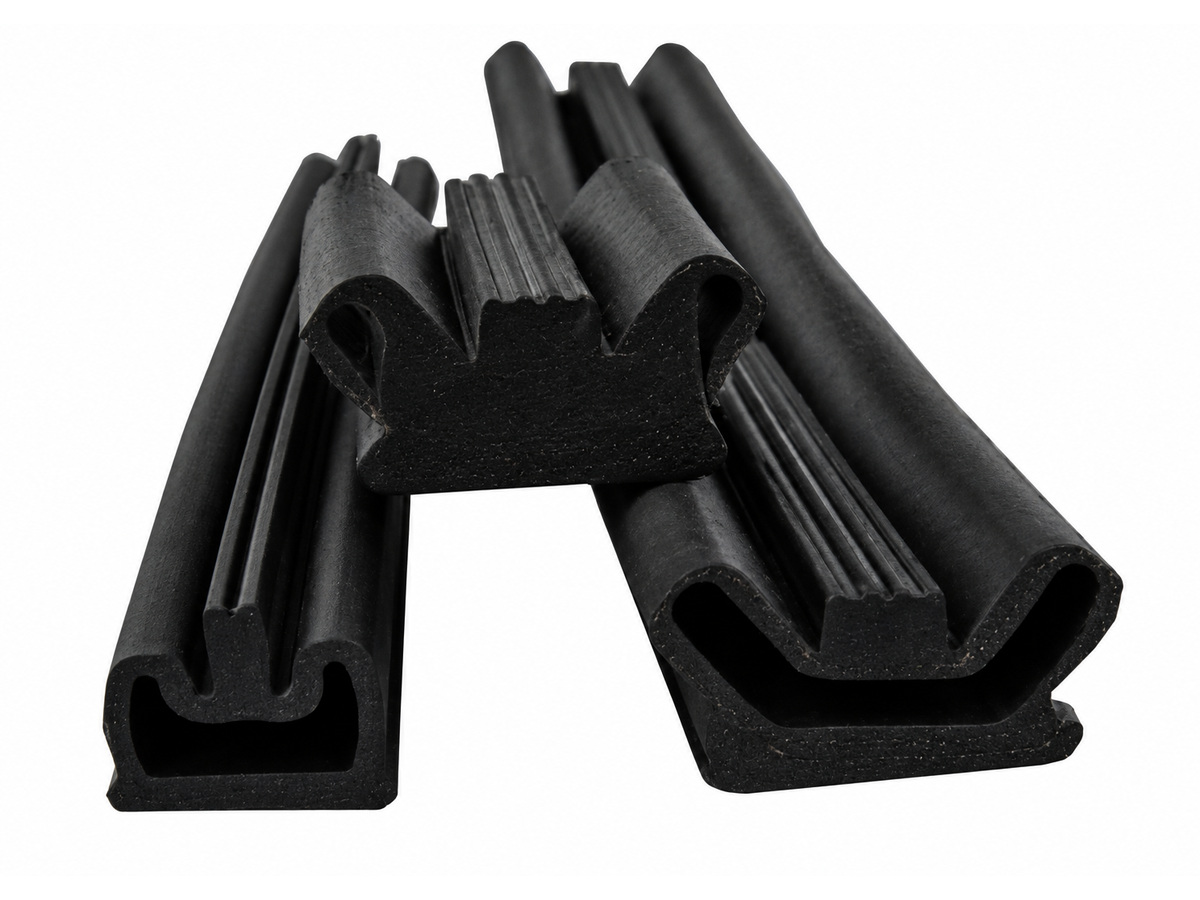

Inflatable sealing profiles developed for applications that need controlled expansion, stronger support or demanding operating cycles.
Reinforcement changes how the hollow profile expands and transfers load into its retaining groove. It is used to control movement rather than simply to make the wall thicker.
During design review, the profile, support, corner radius, joint and air-control components are treated as one system.
Typical projects include large process doors, hatches, powder-transfer equipment and assemblies with wider changing gaps or frequent pressure cycles.
The need for reinforcement is decided from the actual movement, support and duty cycle rather than from product size alone.
More than a thicker wall

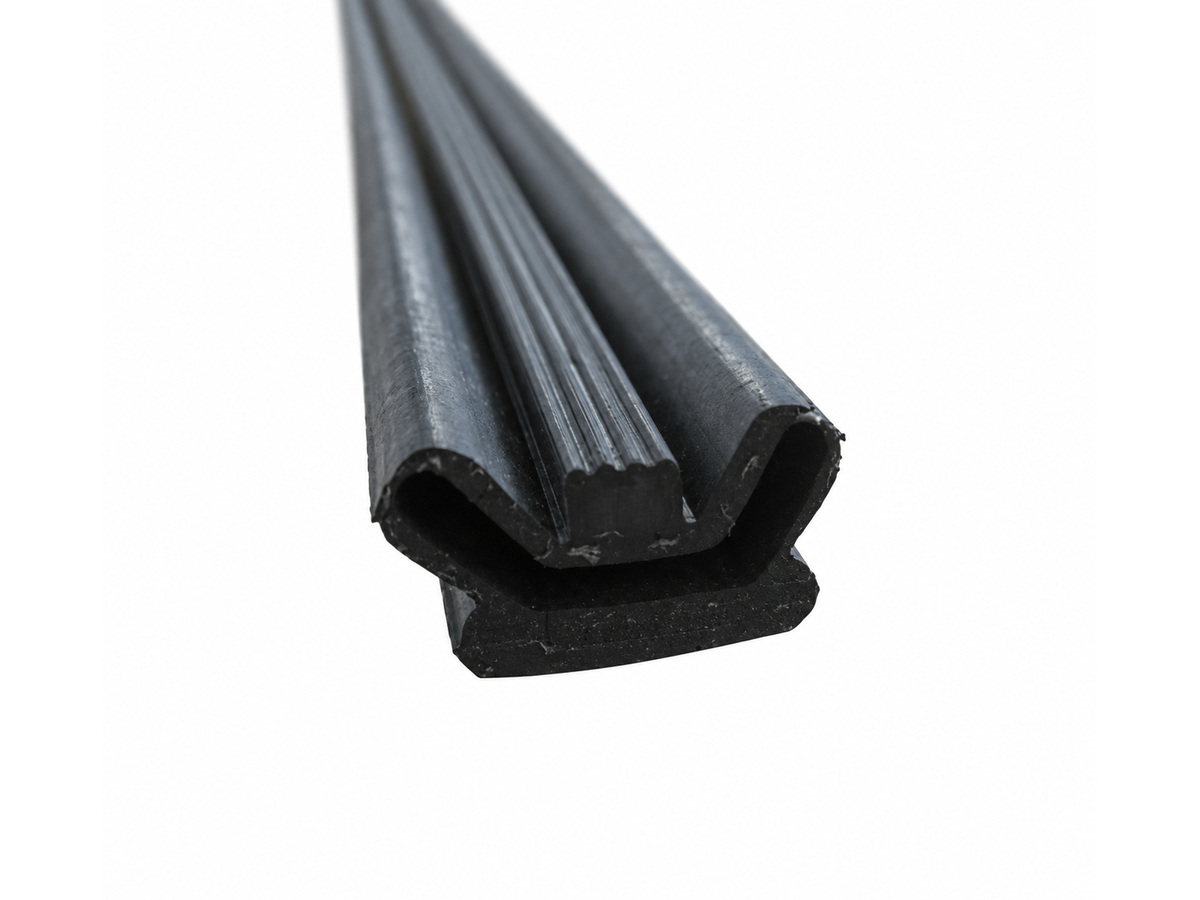

A reinforced inflatable seal is selected when the operating cycle, gap or pressure behavior calls for additional support. Reinforcement changes how the profile expands and how load is transferred into the groove, so it must be considered together with the retaining geometry.
Where reinforced profiles help
Typical projects involve larger closures, wider changing gaps or equipment where repeatable movement is especially important.
- Large process doors and hatches
- Powder and bulk-material transfer equipment
- Equipment with frequent pressure cycles
- Installations requiring secure mechanical retention
Validate the complete assembly
There is no universal pressure limit for every reinforced profile. The cross-section, material, bend radius, joint, groove and air-control components should be validated together under representative conditions.
Frequently asked questions
When is a reinforced inflatable seal preferable to a standard profile?
Consider reinforcement when the assembly needs more controlled expansion, secure load transfer, support across a changing gap or repeatable movement under a demanding cycle. The decision should follow a review of the groove, gap, bend radius and pressure-control system.
Does reinforcement allow a higher inflation pressure?
Not automatically. Reinforcement changes profile behavior, but the acceptable pressure still depends on the complete cross-section, groove support, joint, corner geometry and air-control components. Confirm the limit by prototype testing.
What drawing information is needed for a reinforced profile?
Provide the groove and mating surface, gap range, finished ring or frame dimensions, bend radii, inflation direction, valve route, temperature, medium, cleaning process and cycle frequency.

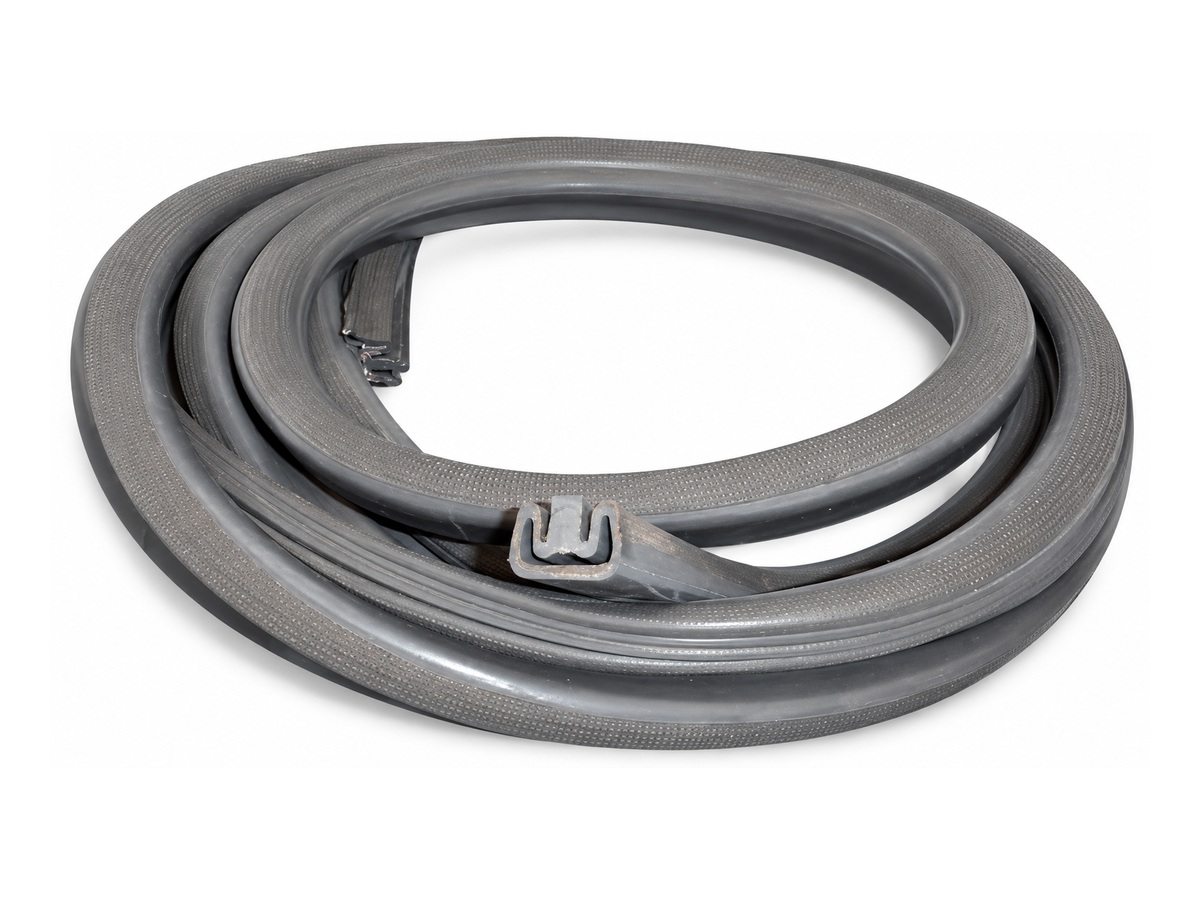

Can a reinforced seal be supplied as a joined frame?
A joined frame may be possible, but the corner radius, reinforcement continuity and joint location must be reviewed for the selected cross-section before production.
